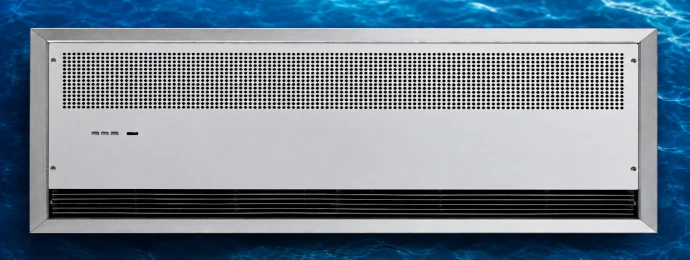

RM 12 Ceiling Air Curtains



Optimal Design
STIGLER ceiling air curtains are characterized by exceptional design and quality. Made of stainless steel, they are easy to maintain and provide a high level of fire protection.
High Durability and Reliability
The air curtain turbine is made of industrial-grade fiberglass-reinforced plastic. German motor manufacturing technology enables up to 5000 hours of continuous and reliable operation.
Flexibility
Specially designed for easy installation in suspended ceilings and in other locations where minimal dimensions are required. The air direction system of these curtains allows easy adjustment of airflow direction and intensity in all directions.
Easy Control
The curtain can be controlled using a switch.
Application
These curtains are intended for exclusive facilities where a high level of aesthetics is required, such as hotels, car showrooms, banks, representative offices ...

All models comply with occupational safety and environmental protection standards and hold all required international certificates.
Technical parameters
Model Length
[mm]
Dimensions [LxWxH]
[mm]
Voltage
[V~]
Motor Power
[W]
Heater power
[KW]
Air
flow
[m3/h]
Air
velocity
[m/s]
Weight
[kg]
H M L HI LO HI LO
RM 1210CS 1000 1037x440x211 380/50Hz 180 8 4 2 1155 1350 9 8 21
RM 1212CS 1200 1217x440x211 380/50Hz 200 10 5 3 1900 1650 9 8 25
RM 1215CS 1500 1497x440x211 380/50Hz 230 12 6 3 2500 2200 9 8 29
